Track Geometry Measuring Device

- Possible to detect overall numerical values such as gauge, cant, vertical irregularity, horizontal irregularity, twist, etc. and distortion of the track
- Lightweight and easy to transport and assemble, allowing one person to measure
- Multiple items can be measured with one measurement

Main function

Possible to detect overall numerical values such as gauge, cant, vertical irregularity, horizontal irregularity, twist, etc. and distortion of the track
Lightweight and easy to transport and assemble, allowing one person to measure
Can measure multiple items with one measurement

Characteristic

Dimension: L1140 * W1850 * H790mm
Weight: within 26 KG
Operating temperature: -20 ~+45°C
Humidity: 15 ~ 85% (without condensation of water vapor)
Use environment: possible to operate even in rainy weather
Measuringtrack : 1435mm
Electronic device (H/W): Lightweight and convenient board mounting
1) Storage capacity: 15km
2) Power: Battery use (10 hours when fully charged)

Ultrasonic Rail flaw detector

- Single rail ultrasonic flaw detector (A, B scan)
- Small rail ultrasonic flaw detector (A, B scan)

Single rail ultrasonic flaw detector (A, B scan)

Possible to detect defects in the head, web, and bottom of the rail using ultrasonic waves
It is possible to save all data of A and B scan displayed in real time. Thus, it is possible to analyze and check the detected data through PC software in one measurement.
Multiplex screen display is possible, allowing simultaneous display and simultaneous playback of A and B scans in real time, data verification using PC software, etc.

Small rail ultrasonic flaw detector (A, B scan)

The small ultrasonic rail flaw detector is easy to carry, so it is easy to manage any defects.
It is possible to detect and manage rail defects caused by corrosion of the wing (flange) of the lower part of the rail by using a probe with a diameter of 6mm.

Rail Straightness Measuring Device

- Measurement of straightness of upper and side surfaces of rail head on welds, insulation joints, etc.
- Remote measurement possible, attached to the rail with a magnet
- An automated system that is not affected by the person measuring
- Measurement of the top and side of the rail head within 10 seconds

Main functions/features

Measurement of straightness of the top and side of rail head on welds, insulation joints, etc.
Remote measurement possible, attached to the rail with a magnet
An automated system that is not affected by the person measuring
Measurement of the top and side of the rail head within 10 seconds

High Platform Gauge / Digital Track Gauge

- High Platform Gauge
- Digital Track Gauge

High Platform Gauge

Used to measure the distance from the track center to the platform and the height from the rail head to the floor surface of platform.
Measurement location
- Measure the distance from the center of the track to the end of the platform
- Measure the height from the head of the rail to theplatform floor
- Measure the track gauge

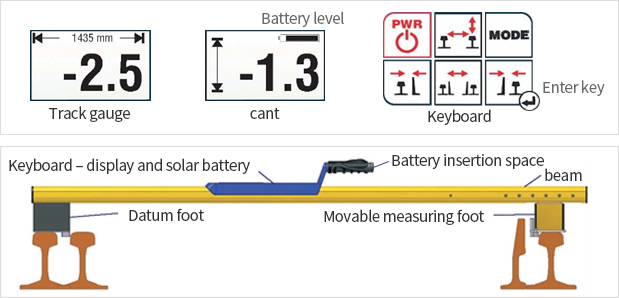

Digital Track Gauge

Used for measurement of cant, gauge, and back gauge of railroad tracks

Lateral resistance measuring device

Equipment that measures the maximum lateral resistance between the sleepers and ballast when the track on the ballast track tries to move horizontally in the direction perpendicular to the track

Main functions/features

A device that measures the maximum lateral resistance between sleepers and ballast when the track on the ballast track tries to move horizontally in the direction perpendicular to the track.
Easy to install and use with compact and lightweight device

Details

Maximum measuring load	2000kg
Available rail	60kg, 50N,40N (other specifications are optional)
Usable Fastening Device	Existing line: #3 of 5 type, #6 of 9 type, Pandrol, wooden sleeper New line: 102 type (other specifications available)
Minimum measurement of load	50kg
Load error range	±5%
Body weight	7kg

Track Utility Vehicle / Flat Trolley · Long Rail Transport Trolley

Track Utility Vehicle
- Flat Trolley · Long Rail Transport Trolley

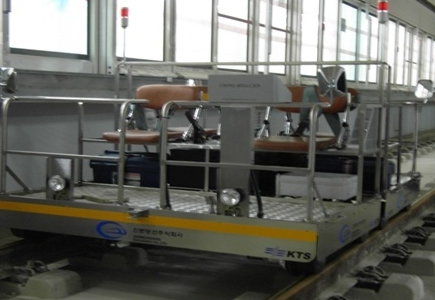

Track Utility Vehicle

Used to check the presence or absence of abnormalities in the track and facilities and the presence or absence of obstacles in the track
Various items can be installed according to the site conditions to facilitate inspection and work
Can be manufactured according to the desired specifications by custom made

Weight	approximately 300 to 400 kg (including batteries)
Gauge	1,435mm
Maximum gradient	55 ‰
Length	approximately 1,600 ~ 2,000mm
Width	approximately 1,600 ~ 1,800mm
Height	approximately 1,500mm
Operating speed	0 ~ 30km/h
Power	Electric battery
Top cover	Available in rainy weather
Direction of operation	Forward and reverse operation possible
Battery usage time	At least 4 hours of continuous use

Flat trolley · Long rail transport trolley

Equipment that moves to the working position by connecting to a motor car after loading track supplies such as rails or heavy objects such as work tools during track maintenance work
Can be manufactured according to the desired specifications by custom made
Composition: body, axle, shaft, braking device, connecting device, parking and braking device, auxiliary device, etc.

Flat trolley
Long Rail Transport Trolley

Small tools

Types of Small tool

Types

potable rail transporter (with rail catcher)
Small tools
case (storage box)
